| Model No. |
Weight (g) |

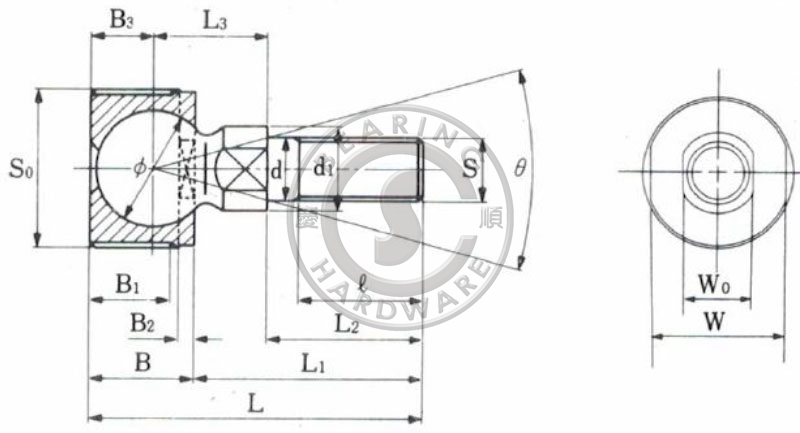

Main dimensions (mm) | ||||||||||||||||
| S JIS2 class 2 |
d h9 |
L | L1 | L2 | L3 | l | d1 | S0 JIS2 class 2 |
B | B1 | B2 | B3 | 珠徑 ⏀ |
W 0 -0.3 |
W0 0 -0.3 |
傾斜角 Θ |
||
| TBS 6 | 30 | M6×1 | 6 | 34.2 | 22.7 | 16 | 12.2 | 11 | 10 | M20×1.5 | 11.5 | 8 | 2 | 7 | 12.7 | 17 | 8 | 30° |
| TBS 8 | 50 | M8×1.25 | 8 | 41.5 | 27 | 17 | 16 | 12 | 12 | M22×1.5 | 14.5 | 11 | 2 | 8.5 | 15.875 | 19 | 10 | 30° |
| TBS 10 | 80 | M10×1.5 | 10 | 55.5 | 38.5 | 26 | 19.6 | 21 | 14 | M25×1.5 | 17 | 13.5 | 2 | 10 | 19.05 | 22 | 11 | 30° |
| TBS 12 | 130 | M12×1.75 | 12 | 64 | 44 | 30 | 22 | 24 | 19 | M30×1.5 | 20 | 15.5 | 3 | 12 | 22.25 | 27 | 17 | 30° |
